Element assertions

How to create and define the criteria of an element assertion

This guide outlines how to create and define the criteria of an element assertion.

Creating an element assertion

You recorded some interactions in your application, and now you're ready to make an assertion! Here's what you can do to create an element assertion:

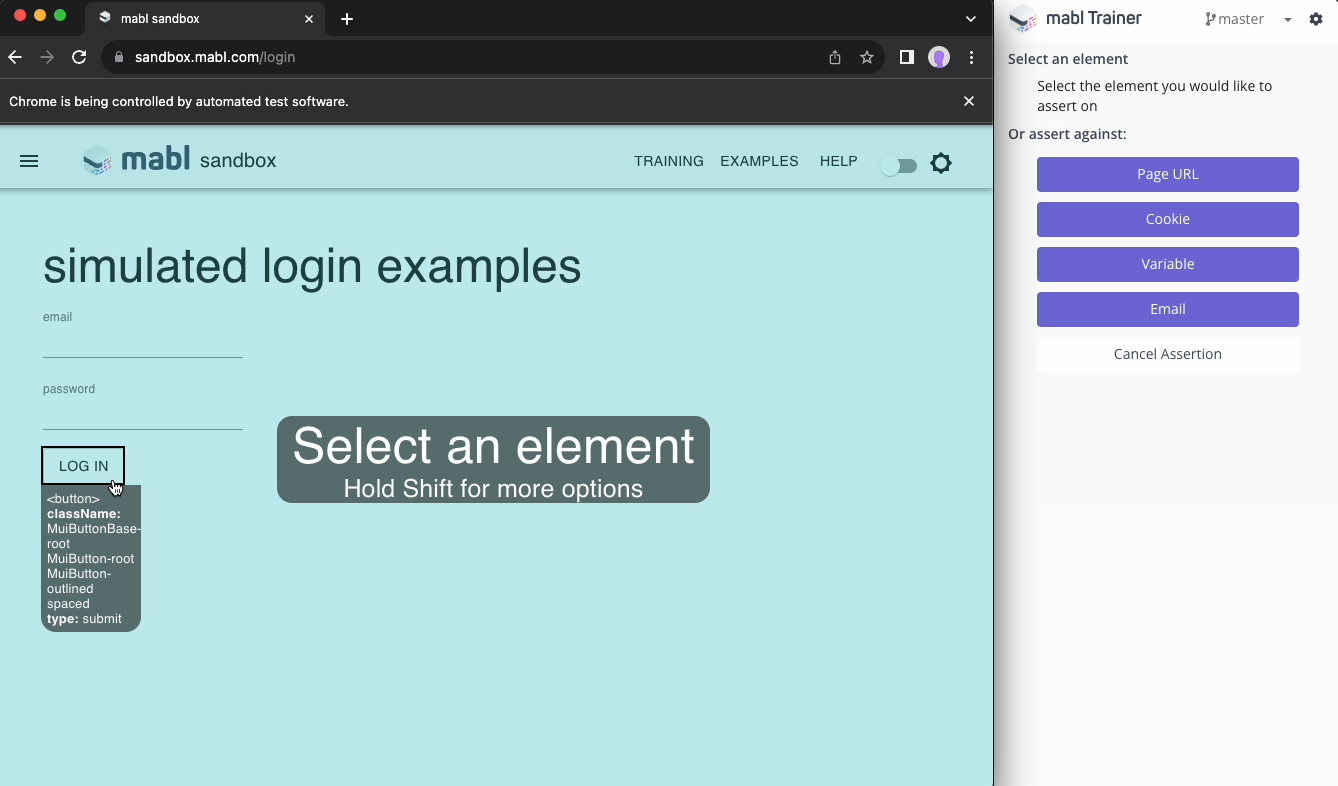

  1. At the bottom of the mabl Trainer window, click on the check mark icon to add an assertion. A prompt to "Click on an element" will appear in the browser window.
  2. Click on the element that you want to assert against.
25822582
  1. In the Trainer window, define the criteria for the assertion in the element assertion menu.
346346
  1. Click OK to save the assertion.

When you create an assertion step, it will immediately run in the mabl Trainer.

📘

Running assertion steps

All find actions in mabl, including assertions, will automatically wait up to 30 seconds for the targeted element to appear. There is generally no need to add an additional wait step before an assertion, unless the element will take more than 30 seconds to appear in your app or if the element comes into existence without being fully realized. In the latter case, a wait step before the assertion may be necessary since mabl will evaluate as soon as it detects that the target element exists. Find more information about wait steps in mabl at our "Adding wait steps with the mabl trainer" doc.

Defining an element assertion

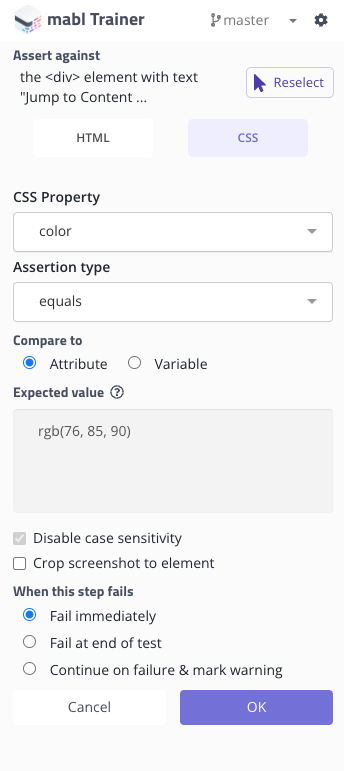

The element assertion menu is where you define the criteria of your assertion. These are the settings:

Assert against

This setting shows which element has been selected. If it appears that the incorrect element has been selected, click on the mouse icon and re-select the element you wish to assert against.

581581

Assertion type

Select an option from this dropdown to indicate how mabl should assert against the element. Does the element just need to be present? Does it need to match or contain a specific value? Supported assertion types include the following: equals, does not equal, greater than, less than, greater than or equals, less than or equals, contains, does not contain, starts with, does not start with, ends with, does not end with, present, and is not present.

583583

Lexicographic comparisons

If a comparison assertion type - greater than, less than, greater than or equals, and less than or equals - is used for values that cannot be interpreted as numbers, mabl orders the values according to their characters' Unicode code points. In this standard, the order of values from lowest to highest is as follows:

  • Numbers (123...)
  • Capital letters (ABC...)
  • Lowercase letters (abc...)

📘

The "is not present" assertion

This assertion type can be useful for confirming that unique page content does not appear on the page after navigation or to confirm that a delete action removed an item from the page.
By default, the "is not present" assertion will run for 30 seconds or until they find an element that matches.

Attribute/property

All assertion types, excluding "is present" and "is not present" assertions, require you to specify the attribute or property you'd like to assert against, such as "innerText", "value," or "checked."

584584

📘

Understanding attributes and properties

If you need more information on what an attribute or property represents, try looking it up in MDN.

Compare to

You can choose between Attribute or Variable. If you select Attribute, you can use valid expressions, including mabl variable syntax. See the following screenshot for an example.

585585

Example of an assertion that uses mabl variable syntax

📘

Character limit

Assertions have a character limit of 300. If you are trying to assert on an element that has more than 300 characters, mabl will capture only up to 300 characters.

Optional settings

If desired, you can set the assertion to disable case sensitivity, continue on failure, or crop screenshot to element.

335335

If you check "Crop screenshot to element," during cloud runs, mabl will capture a screenshot of the element instead of the full screen. This setting could make it easier to see which element mabl asserted on in detail or do visual comparisons on the asserted element, even if the element moves around the screen.

12061206

Example of an assertion step that is cropped to the element.
